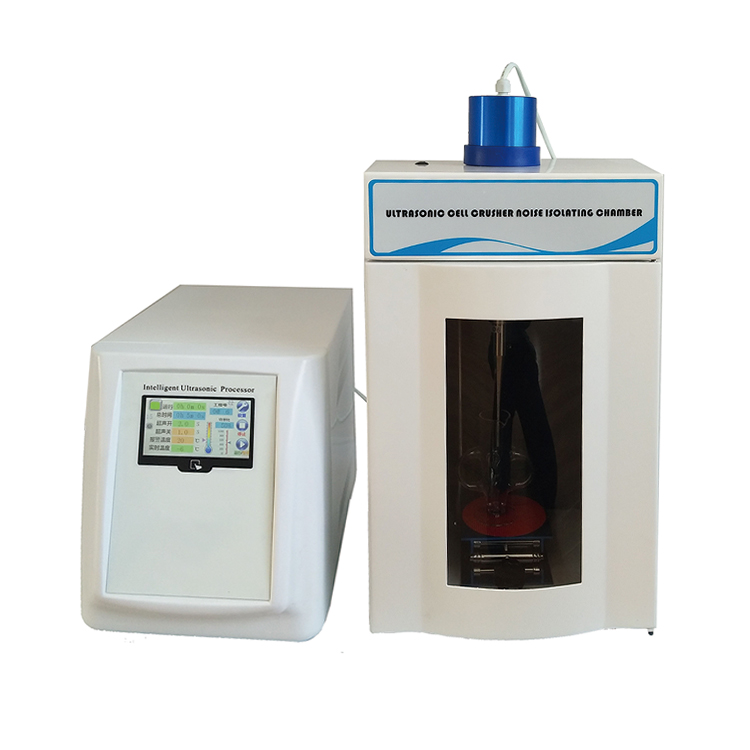

Homogenizer AY-LC3000

Homogenizer AY-LC3000

Product Description:
Lab Scale Ultrasonic cell crusher disruption system Sonicator Homogenizer is a multi-functional and multi-purpose instrument that uses the ultrasonic to generate cavitation effect in liquid and ultrasonically treats the material. It is equipped with a fully digital intelligent ultrasonic generator, which greatly improves the instrument work,Stability and reliability. The instrument can be used for the crushing of various animal and plant cells and virus cells, and can be used for emulsification, separation, homogenization, extraction, defoaming, washing and accelerating chemical reactions. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
Can also be used to produce wave extraction, ultrasonic material preparation, ultrasonic extraction, ultrasonic emulsification etc.

Technical Features:



1. The latest ultrasonic circuit, continuous uninterrupted ultrasound, automatic tracking frequency and automatic resonance point and power control, no need to manually adjust energy manually
2. Working mode: 3.5-inch touch screen touch operation, the operation is simple and convenient; the screen displays the
working parameters in real time, and the running status is cumulatively displayed; the micro-processing controller can store more than 20 groups of working program, and the 99-hour process control timer controls the total time: 1 second to 99 hours 99 mins 99 seconds
3. Ultrasonic frequency converter adopts lead zirconate titanate crystal piezoelectric frequency converter to seal and isolate water vapor and corrosive gas.
4. On/Off pulse timer, closed cycle and open cycle can be set arbitrarily from 1 second to 99 seconds to ensure high intensity processing of samples.
5. Unique automatic amplitude and pulse compensation function to ensure that the probe amplitude does not change due to load change during ultrasonic.
6. The transducer is made of German IBDI ceramic wafer material, which has high ultrasonic efficiency and is not easy to heat for a long time.
7. Ultrasonic probe is made of US standard TC4 titanium alloy. It is not easy to wear and cavitation when using probe for a long time (requires on-site verification, continuous ultrasonic for 30 mins without damage to the probe)
8. The equipment can work intermittently or at no load. It meets the requirements of different experiments and needs to be verified (no-load ultrasonic for 10 mins is acceptable)
9. The whole equipment is opened for mold making, with small volume and high efficiency, and beautiful appearance.


Main Applications:

1. Drug extraction, cell, bacteria, and viral tissue disruption. Such as the extraction of cell contents.
2. Dispersion, homogenization, and emulsification of the material particles. Such as the dispersion of nanomaterials.
3. Accelerate the dissolution and accelerate the chemical reaction. For chemical synthesis, this ultrasonic device is equipped with a soundproof box bracket, a special soundproof box, and a low temperature system.
4. Ultrasonic crushing is an application of sonochemical equipment, which can be used for plant extraction, water treatment, solid-liquid dispersion, deagglomeration of particles in liquid, promotion of solid-liquid reaction, etc., so that aggregates with larger particle sizes are dispersed. Smaller particles. Stabilization means ensuring long-term uniform dispersion of powder particles in the liquid, etc.



Model
AY-LC500
AY-LC1000
AY-LC1500
AY-LC3000
Power Rate
5-500w
10-1000w
15-1500w
1000-3000w
Crushing Capacity
0.1-400ml
0.1-700ml
1-1500ml
5-5000ml
Display Mode
Real color 4.3-inch capacitive touch screen display
Single Ultrasound Time
0.1-99.9S
Single Interval Time
0.1-99.9S
Total Time (Ultrasound+Gap)
1-99H59M59S
Frenquency Range
20-25KHz
20-25KHz
19.5-20.5KHz
19.5-20.5KHz
Temperature Range
0-100 ℃ (optional low temperature circulator)
Alarm Function
Time, Overload, No Load, Over Temperature
Standard Horn
Φ6(mm)
Φ6(mm)
Φ22(mm)
Φ40(mm) Extended Type
Optional Horn
Φ2, 3, 10, 12(mm)
Φ2, 3, 8, 10, 12, 15(mm)
Φ3, 6, 10, 15, 20, 25(mm)
Φ20, 35, 38, 40 Extended Type, 50(mm)
Data Storage
20 Groups
20 Groups
20 Groups
20 Groups
Power Supply (110V Optional)
220V/110V/ 50Hz/60HZ
Instrument Net Size (L*W*H)
410*225*290mm
410*225*290mm
410*225*290mm
510*225*290mm
Net weight of Host Machine
12kg
12kg
16kg
17kg
Gross weight of Host Machine
16kg
16kg
19kg
21kg
Packing Size of Host Machine (L*W*H)
470*305*430mm
470*305*430mm
470*305*430mm
470*305*430mm
Gross weight of Soundproof box
10kg
10kg
10kg
15kg
Packing Size of Soundproof box (L*W*H)
350*350*550mm
350*350*550mm
350*350*550mm
430*415*730mm
Optional Functions
Computer communication + data printing + Soundproof box lighting or sterilization
Control Mode
MCU + TFT touch
Voice alarm and prompt function
Yes
Continuous ultrasound function
Not Support
